NTD Shot Pin Assembly

Add to quote
SKU: N/A Categories: ,

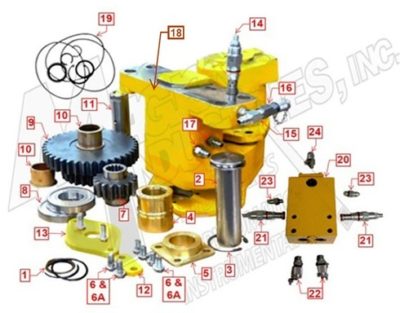

Description

#

Magic #

OEM #

Part Description

# Req.

1

 NTD221169 110058 Seal kit sleeve, shot pin (TDS 10 & TDS 11)

1

2

 NTD228942 117831 Shot pin (TDS 10 & TDS 11)

1

3

 N/A 53500-225 Ring, retaining, internal

1

4

 NTD41262062 30151951 Sleeve, shot pin brass (TDS 11)

1

5

 NTD41262072 30151961 Bushing, shot pin, square brass (TDS 11)

1

6

 N/A 50006-06C5D Bolt, hex hd, 3/8” grade 8

8

  6A

 N/A 50905-C Lock washer, split 3/8”

8

7

 NTD41267367 30156256 Gear, drive

1

8

 BRG62082RS N/A Bearing, rubber seal

1

9

 NTD41267361 30156250 Gear, compound 40×25

1

10

 NTD223865-241 112754-130 Bushing, gear, shot pin (TDS 11 only)

2

11

 NTD41262071-MU 30151960 Shaft, compound gear

2

12

 N/A N/A Lock plate, compound shaft

2

13

 N/A N/A Retainer bracket

1

14

 S/H-RDDA-LAN 94522-1EN Valve, cartridge (TDS 10 & TDS 11)

1

15

 FIT6803-060606 N/A MJIC X MJIC X M O-ring

1

16

 S/H-SMK20-3/8JIC 93024-6JIC Test port fitting

1

17

 FIT6400-0606 53201-SS Straight MJIC X M O-ring

2

18

 NTD41262064 30151953 Housing, Hyd. Drive shot pin

1

19

 NTD41269122 30158011 Motor, shot pin (TDS 11 )

1

20

 NTD221274-3 110163-2 Manifold, shot pin

1

21

 S/H-RPEC-LAN N/A Cartridge, valve

2

22

 S/H-SMK20-9/16UNF N/A Test port – 9/16”

2

23

 FIT6400-06-04O N/A MJIC X MODT

2

24

 S/H-SMK20-7/16UNF N/A Test port – 7/16”

1
